How It Works

This page explains Hydron's full deployment pipeline — from the moment you connect your code to when your application is live and serving traffic.

The deployment pipeline

Hydron's deployment process consists of six stages: Source Connection, Analysis, Planning, Provisioning, Building, and Deployment.

Stage 1: Source connection

You provide the source of your application through one of three methods:

  • Git repository — GitHub, GitLab, Bitbucket, or any public URL
  • Docker image — An existing image from any Docker registry
  • Template — A pre-configured stack from the template gallery

For Git repositories, Hydron clones the code to analyze it. For Docker images, analysis is skipped and you proceed directly to infrastructure planning.

Choose your deployment source — Git, Docker, or templates

Stage 2: Code analysis

The AI performs a deep analysis of your codebase:

Language & framework detection

  • Identifies programming languages and their versions
  • Detects frameworks (Express, Django, Rails, Spring, Next.js, etc.)
  • Reads package managers (npm, pip, bundler, maven, etc.)

Service discovery

  • Finds entry points and service boundaries
  • Detects monorepo structures
  • Identifies background workers, API servers, and frontends

Configuration extraction

  • Extracts environment variable references
  • Finds existing Dockerfiles
  • Detects port configurations and health check endpoints

Dependency mapping

  • Maps service-to-service dependencies
  • Identifies database and cache requirements
  • Detects external service integrations

The analysis results in a list of services with their configurations, which you review and approve.

Code analysis results appear in the chat with service details in the sidebar

Stage 3: Infrastructure planning

Based on the analysis, the AI generates an infrastructure plan that specifies:

Server selection

The AI recommends server specifications based on your application's needs:

Application Analysis         Recommended Server
─────────────────────       ──────────────────────
Node.js API + React         KS-LE-B
3 services                  4 vCPU, 16GB RAM
Low-medium traffic          500GB SSD
                            Frankfurt, DE

Factors considered:

  • Number and type of services
  • Expected resource usage (CPU, memory, disk)
  • Geographic location preference
  • Budget constraints

Docker configuration

For each service, a Dockerfile is either detected or generated. The AI creates optimized multi-stage builds that minimize image size and build time.

Networking

The plan defines:

  • Port mappings for each service
  • Internal networking between services
  • External port exposure for public-facing services
  • Reverse proxy configuration

Environment & security

  • Environment variable definitions
  • SSL certificate requirements
  • Firewall rules
  • Security best practices

You review the complete plan in the Infrastructure panel and can request changes through the chat before approving.

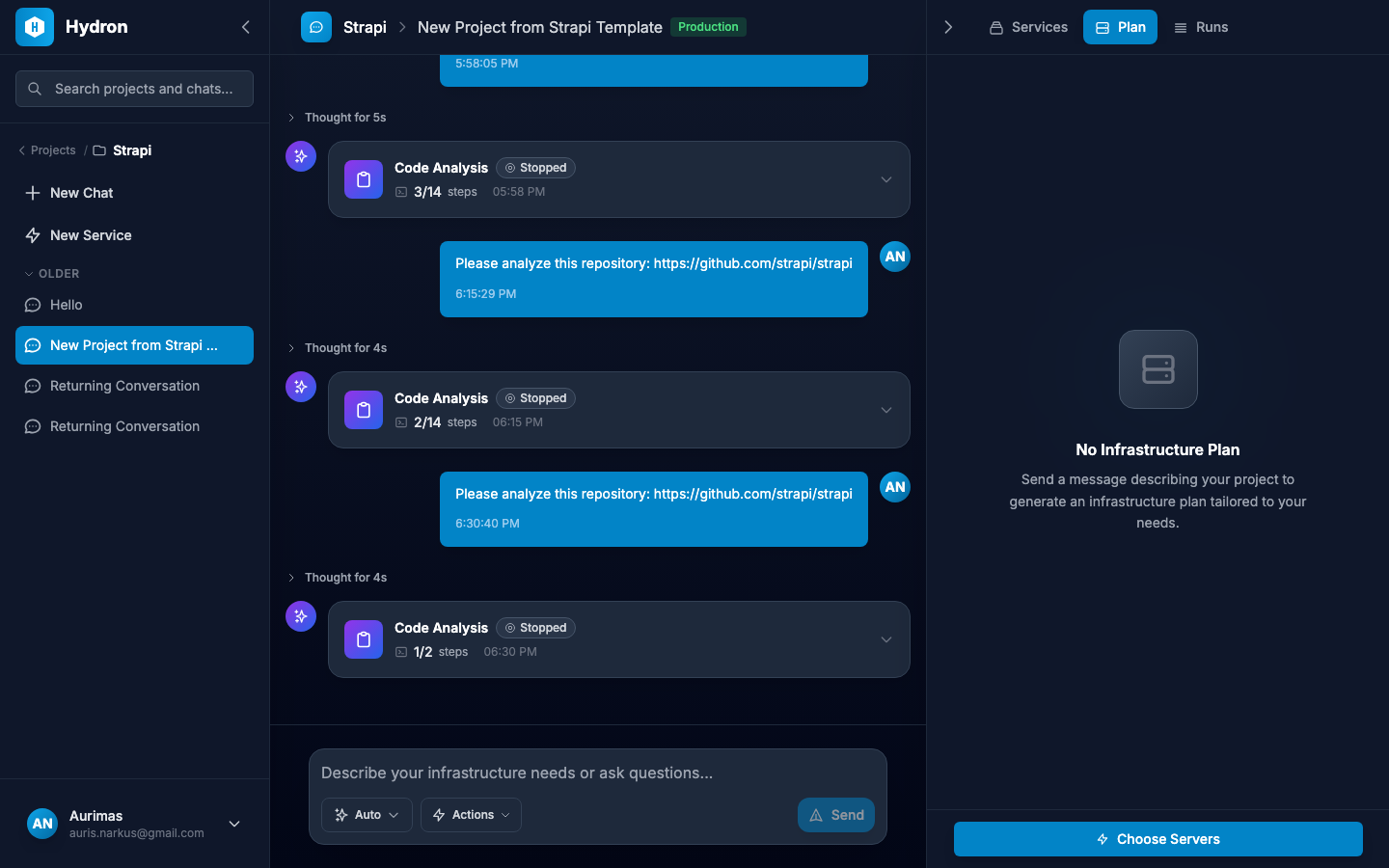

The Plan tab showing infrastructure configuration

Stage 4: Server provisioning

Once you approve the plan, Hydron provisions your dedicated server:

Provisioning Steps
┌─────────────────────────────────────────────────┐
│  [====] Install operating system         Done   │
│  [====] Configure networking             Done   │
│  [====] Install Docker & tools           Done   │
│  [====] Set up firewall rules            Done   │
│  [====] Configure SSH access             Done   │
│  [==  ] Pull base images              Running   │
│  [    ] Configure reverse proxy       Pending   │
│  [    ] Set up SSL certificates       Pending   │
└─────────────────────────────────────────────────┘

This includes:

  1. OS installation — Ubuntu with the latest security patches
  2. Docker setup — Docker Engine and Docker Compose
  3. Security hardening — Firewall rules, SSH key configuration
  4. Networking — Internal DNS, port forwarding
  5. Tooling — Monitoring agents, log collection

Each step is executed via SSH and you can watch the progress in real-time through the Runs panel.

Stage 5: Build

With the server ready, Hydron builds your application:

  1. Clone repository (if Git source) or pull image (if Docker source)
  2. Build Docker images using the configured Dockerfiles
  3. Push images to the server
  4. Verify builds — Ensure images are valid and contain expected artifacts

Build logs are streamed in real-time so you can monitor progress and catch any issues.

Stage 6: Deployment

Finally, your application is deployed:

  1. Start containers in the correct order based on dependencies
  2. Configure networking between services
  3. Set up reverse proxy (Nginx/Traefik) for routing
  4. Provision SSL certificates
  5. Run health checks to verify everything is working
  6. Configure domains to point to the new deployment
Deployment complete — services are running and accessible

After deployment

Once your app is live, you can:

  • Monitor health status and resource usage
  • View logs in real-time from any service
  • Redeploy with code changes
  • Scale by upgrading server specifications
  • SSH in for direct server access

Architecture overview

Hydron consists of several internal services working together:

  • Frontend (React) — The user interface you interact with
  • Backend (Express) — API server managing business logic
  • Code Analyzer — Service that scans and analyzes repositories
  • Code Deployer — Service that builds Docker images and deploys them
  • DevOps Runner — Orchestration service for server provisioning
  • LLM (Claude) — AI engine making intelligent decisions at each stage

The AI orchestrates the entire process, making intelligent decisions at each stage based on your code and requirements.
